Product Description

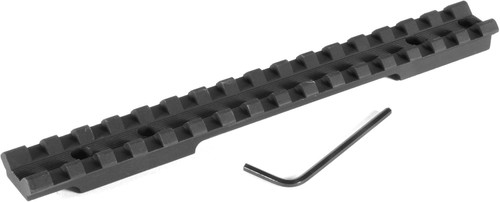

EGW Picatinny Scope Mount for Savage Flat Back Short Action 0 MOAThis mount fits:
Savage Model 110 Short Action Flat Rear Receiver - Pre 2003
Savage Model 111 Short Action Flat Rear Receiver - Pre 2003
Savage Model 112 Short Action Flat Rear Receiver - Pre 2003
Savage Model 114 Short Action Flat Rear Receiver - Pre 2003
Savage Model 116 Short Action Flat Rear Receiver - Pre 2003
Savage Striker (Please confirm your hole spacing)
This mount does not fit:
Any Savage Short Actions with Round Rear Receivers
Please check your mounting screw diameter and hole spacing before placing your order to ensure you select the correct mount. Screw diameter and hole spacing information can be found in the description tab below.
Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 3.93"
Overall Length: 6.670"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
