Product Description

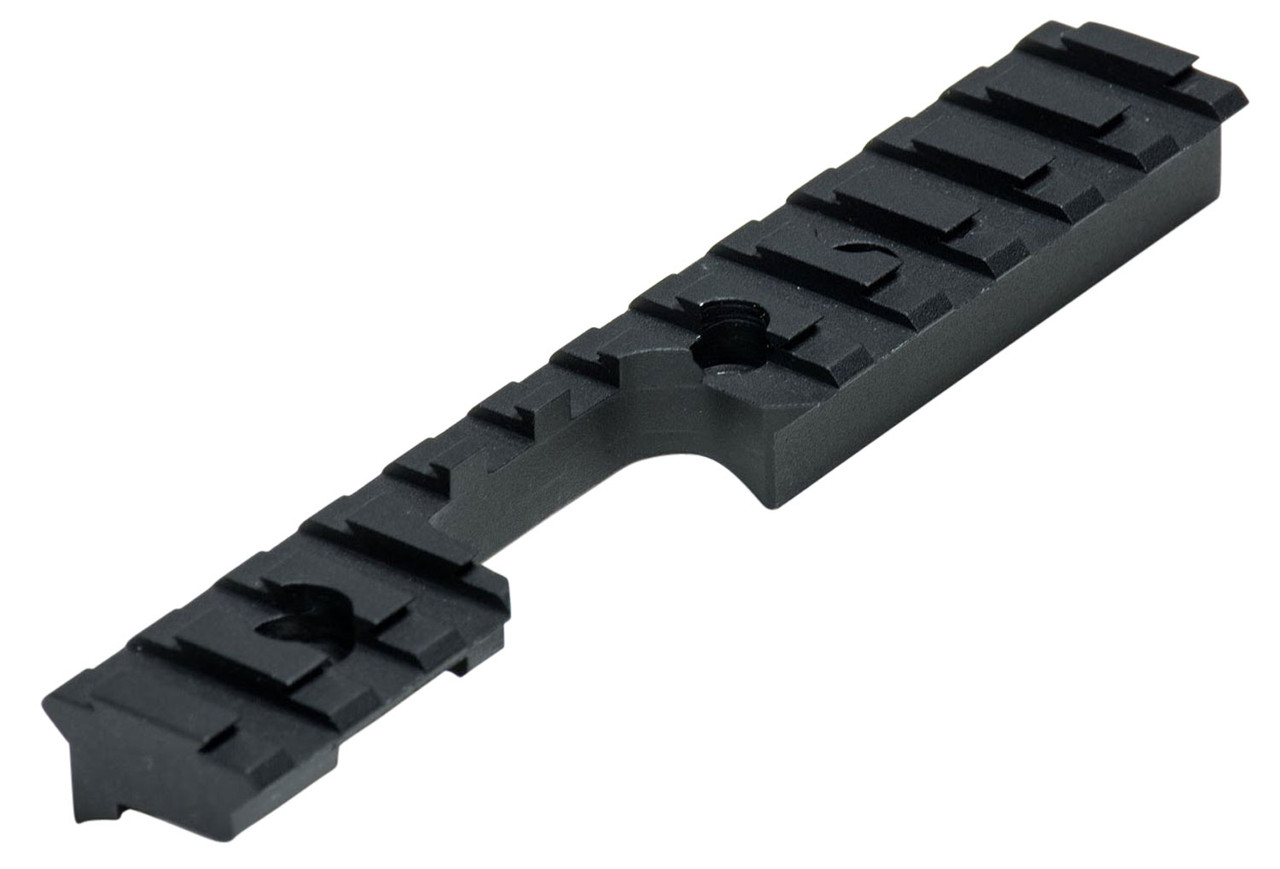

Crickett & Chipmunk Scope Mount Black Picatinny Rail Matte BlackPicatinny Style mount that accepts any weaver or picatinny style rings.
Total length – 4 7/8″
utilizes the same mounting procedure as the standard Crickett® scope mount
includes mounting screws
does not accept 3/8″ dovetail rings (Use KSA031 SCOPE MOUNT KIT with KSA054 CRICKETT SCOPE)
*Crickett and Chipmunk Rifle use only*
Crickettinny Scope Mount Kit
This upgraded Picatinny style mount provides a longer mounting surface to utilize larger scopes or “red dot” style optics.
(NOT COMPATABLE with KSA054 CRICKETT 4 X 32 SCOPE)
Installation Instructions:
Remove the two 6×48 plug screws on the front of the receiver and the 6×32 screw and rear sight aperture from the rear sight elevation bar.
Loosen the rear sight elevation screw (on side of the receiver.)
Place mount base in position and start the two front 6×48 screws and one rear 6×32 screw.
Continue to fully tighten the front two screws. Then tighten the one rear screw.
Maintain down pressure on mount and tighten the elevation screw.
Install and tighten any weaver or picatinny style rings and scope of your choice.
